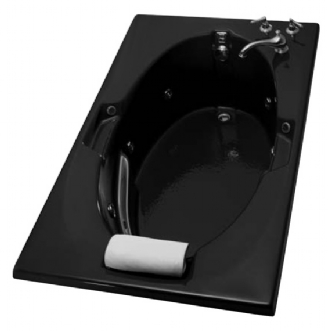

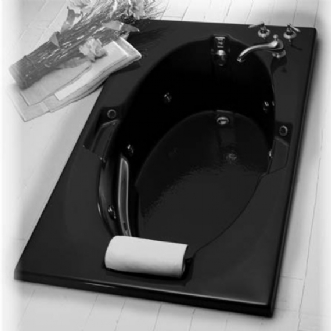

Largo 4260IS Whirlpool

• 59-7/8" (1521 mm) Length, 41-3/4" (1060 mm) Width,

• 21-1/2" (546 mm) Height - 205 lbs., Cubes 50.6

• Six Jetted Multi-Directional Whirlpool System

• Rectangular Unit with Oval Bathing Well

• Integral Apron/Skirt with Removable Access Panel

• Integral Tiling Flange

• 14" Pillow included for Bathing Comfort

• 2HP Pump Motor 1 phase, 115V, 60HZ, 3450 RPM

• Pre-Leveled FRP Base for Ease of Installation

• Dual Air Volume Controls

• Safety Suction Fitting

• Trim and Jets Removable and Top Rack Dishwasher Safe

• Optional Inline Heater Available

• Water Capacity at Operating Level - 38 Gallons

• Weight - Empty 140 lbs., with Water 457 lbs.

Fixtures & Components

Main Fixtures

• 015-0354 - Six Jet Whirlpool Bath and Soft AirTM Bubbler System
  See your local Menards store for current pricing
  Complete with Color-Matched
  • Whirlpool Trim, One 2 HP Motor, One 2 HP Blower, Less Bath Waste
• 015-0356 - Six Jet Whirlpool Bath with Aqua-Therapy Back Massage Jets
  See your local Menards store for current pricing
  Complete with Color-Matched
  • Whirlpool Trim, One 2 HP Motor, One 3/4 HP Motor, Less Bath Waste
• 015-0357 - Six Jet Whirlpool Bath with Both Aqua-Therapy Back Massage and Soft AirTM Bubbler System
  See your local Menards store for current pricing
  Complete with Color-Matched
  • Whirlpool Trim, One 2 HP Motor, One 2 HP Blower, Less Bath Waste
• 015-0358 - Six Jet Whirlpool Bath
  See your local Menards store for current pricing
  Complete with Color-Matched
  • Whirlpool Trim, 2 HP Motor, Less Bath Waste

Optional Components

• 494-1550 - Factory Installed In-Line Heater, Maintains Bathing Water Temperature
  See your local Menards store for current pricing


Downloads

• Spec Sheet
• Installation Instructions

Téléchargements

• Instructions d'installation

Descargas

• Instrucciones de instalación
