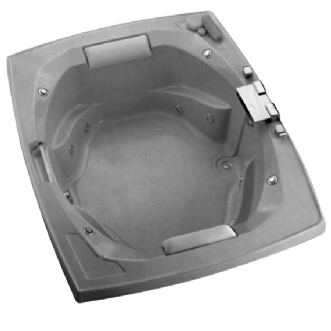

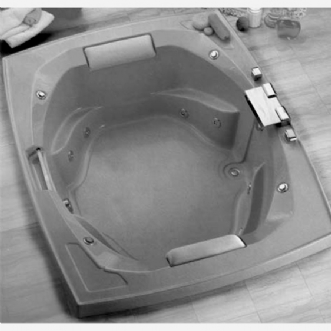

Oasis 8163 Whirlpool

• 81" (2057 mm) Length, 63-1/4" (1607 mm) Width,

• 24-1/2" (622 mm) Height - 315 lbs., Cubes 90.6

• Eight Jetted Multi-Directional Whirlpool System

• Rectangular Unit with Generous Oval Bathing Well

• Integral Arm Rests and Integral Towel Bar

• Two 14" Pillows included for Bathing Comfort

• 2HP Pump Motor 1 phase, 115V, 60HZ, 3450 RPM

• Pre-Leveled FRP Base for Ease of Installation

• Dual Air Volume Controls

• Safety Suction Fitting

• Trim and Jets Removable and Top Rack Dishwasher Safe

• Optional Inline Heater Available

• Water Capacity at Operating Level - 85 Gallons

• Weight - Empty 245 lbs., with Water 953 lbs.

Fixtures & Components

Main Fixtures

• 015-3104 - Eight Jet Whirlpool Bath and Soft AirTM Bubbler System
  See your local Menards store for current pricing
  Complete with Color- Matched
  • Whirlpool Trim, One 2-1/2 HP Motor, One 2 HP Blower, Less Bath Waste
• 015-3105 - Eight Jet Whirlpool Bath
  See your local Menards store for current pricing
  Complete with Color-Matched
  • Whirlpool Trim, 2-1/2 HP Motor, Less Bath Waste Center Drain, Left Hand Pump
• 015-3106 - Eight Jet Whirlpool Bath with Aqua-Therapy Back Massage Jets
  See your local Menards store for current pricing
  Complete with Color-Matched
  • Whirlpool Trim, One 2-1/2 HP Motor, One 3/4 HP Motor, Less Bath Waste
• 015-3107 - Eight Jet Whirlpool Bath with Both Aqua-Therapy Back Massage and Soft AirTM Bubbler System
  See your local Menards store for current pricing
  Complete with Color-Matched
  • Whirlpool Trim, One 2-1/2 HP Motor,One 2 HP Blower, Less Bath Waste
• 015-3109 - Eight Jet Whirlpool Bath
  See your local Menards store for current pricing
  Complete with Color-Matched
  • Whirlpool Trim, 2-1/2 HP Motor, Less Bath Waste Center Drain, Right Hand Pump

Optional Components

• 494-1550 - Factory Installed In-Line Heater, Maintains Bathing Water Temperature
  See your local Menards store for current pricing


Downloads

• Spec Sheet
• Installation Instructions
