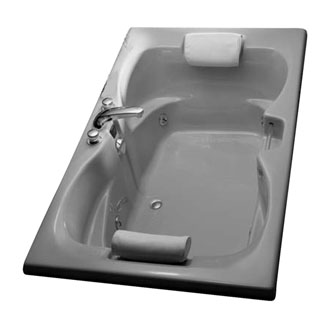

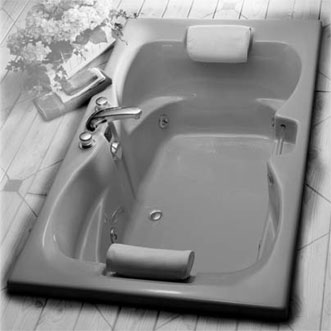

Orleans 4260 Whirlpool

• 60" (1524 mm) Length, 42" (1067 mm) Width,

• 23" (584 mm) Height - 235 lbs, Cubes 44.3

• Six Multi-Directional, Adjustable Whirlpool Jets

• Two 14" wide Pillows Included for Bathing Comfort

• 2HP Pump Motor 1 phase, 115V, 60HZ, 3450 RPM

• Pre-Leveled FRP Base for Ease of Installation

• Dual Air Volume Controls

• Convenient Towel Bar Included

• Safety Suction Fitting

• Trim and Jets Removable and Top Rack Dishwasher Safe

• Optional Inline Heater Available

• Water Capacity at Operating Level - 44 Gallons

• Weight - Empty 170 lbs., with Water 537 lbs.

Fixtures & Components

Main Fixtures

• 015-3604 - Six Jet Whirlpool Bath and Soft AirTM Bubbler System Complete with Color-Matched* Whirlpool Trim
  See your local Menards store for current pricing

  • One 2 HP Motor, One 2 HP Blower, Less Bath Waste
• 015-3605 - Six Jet Whirlpool Bath - Left Hand Pump
  See your local Menards store for current pricing
  Complete with Color-Matched
  • Whirlpool Trim, 2 HP Motor, Less Bath Waste Center Drain, Left Hand Pump
• 015-3606 - Six Jet Whirlpool Bath with Aqua-Therapy Back Massage Jets
  See your local Menards store for current pricing
  Complete with Color-Matched
  • Whirlpool Trim, One 2 HP Motor, One 3/4 HP Motor, Less Bath Waste
• 015-3607 - Six Jet Whirlpool Bath with Both Aqua-Therapy Back Massage andSoft AirTM Bubbler System
  See your local Menards store for current pricing
  Complete with Color-Matched
  • Whirlpool Trim, One 2 HP Motor, One 2 HP Blower, Less Bath Waste
• 015-3609 - Six Jet Whirlpool Bath - Right Hand Pump
  See your local Menards store for current pricing
  Complete with Color-Matched
  • Whirlpool Trim, 2 HP Motor, Less Bath Waste Center Drain, Right Hand Pump

Optional Components

• 494-1550 - Factory Installed In-Line Heater, Maintains Bathing Water Temperature
  See your local Menards store for current pricing


Downloads

• Spec Sheet
• Installation Instructions

Téléchargements

• Instructions d'installation

Descargas

• Instrucciones de instalación
